Retroreflectometer For Road Markings Patented optical system
UNS-BX1 Accurate data One key calibration Manufacturer
This instrument is a portable on-site measuring instrument, used
for measuring the retroreflection characteristic of road marking.
instrument is to simulate the brightness of road marking that can be seen by the driver under the illumination of
motor vehicles at night, and the measured parameter is the
coefficient of retrorefection brightness at night, namely, RL value.
Designed with high precision and high stability structure,
UNS-BX1-type marking retroreflectometer applies high-standard MCU
master module, large-capacity storage unit, touch screen display
with handwriting input function and embedded program control
software, supports for rapid inspection and prints out results on
site through the built-in printer. It is featured by free
preheating, small measurement error, out-of-the-box and so on. This
is a necessary instrument for the production, quality supervision,
engineering construction, supervision and other units to measure
the retroreflection performance of road marking.
Main technical parameters
Measurement range | 0---4000 |
Error of repeatability measurement | ≤3% |
| Observation angle | 1.05° |
| Angle of incidence | 88.76°, Complementary angle is 1.24° |
| Light source color temperature | 2856±50K |

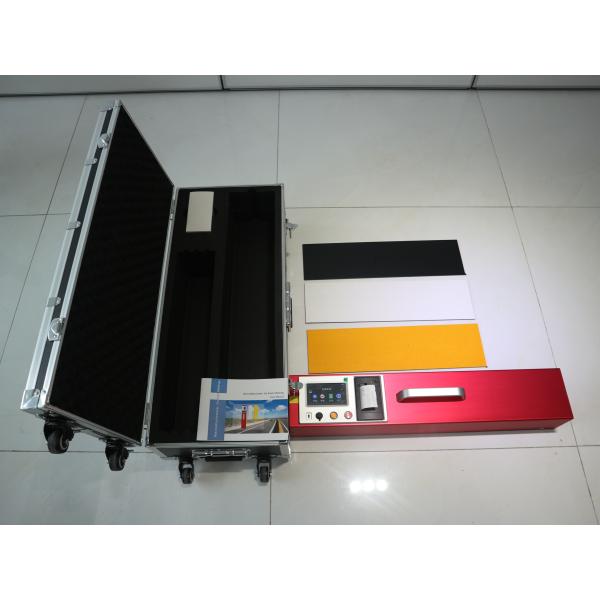

Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal
orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :3-7 working days
Any other shipment way could be negoticated
