Rapid Measureme,Simple Calibration Procedure Of Retroreflector
Meter For Road Markings
Retroreflective marking measuring instrument is a special optical
measuring device used to measure the reflective performance of road
markings. The measured parameter is the retroreflective coefficient
R '(or specific brightness) of the marking, and the unit is mcd •
lx -1 • m -2. The instrument is easy to operate and reliable in
value. It can be used in laboratories as well as on-site
measurement. It is the first-choice instrument for measuring the
retroreflective optical performance of highway markings for
production, quality supervision, engineering construction,
supervision, teaching and scientific research.
This instrument is a kind of professional measuring instrument
mainly developed by Hefei SYNTOPE International Trade Co., Ltd.
This product has completely independent intellectual property
rights and has obtained relevant patents and software copyrights.
It also has passed the testing and calibration certification of
National Institute of Metrology and Transportation, China and China
Academy of Transportation Science.
Main technical parameters
| Measuring aperture area | 450mm x65mm |
| Error of repeatability measurement | ≤5% |
| Angle of incidence | 88.76° |
| Observation angle | 1.05° |
| Complementary angle | 1.24° |
| Measurement range | 0---4000 |
Packing list
| Serial number | Name Specification | Number |
| 01 | Retroreflectiometer For Road Markings | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |

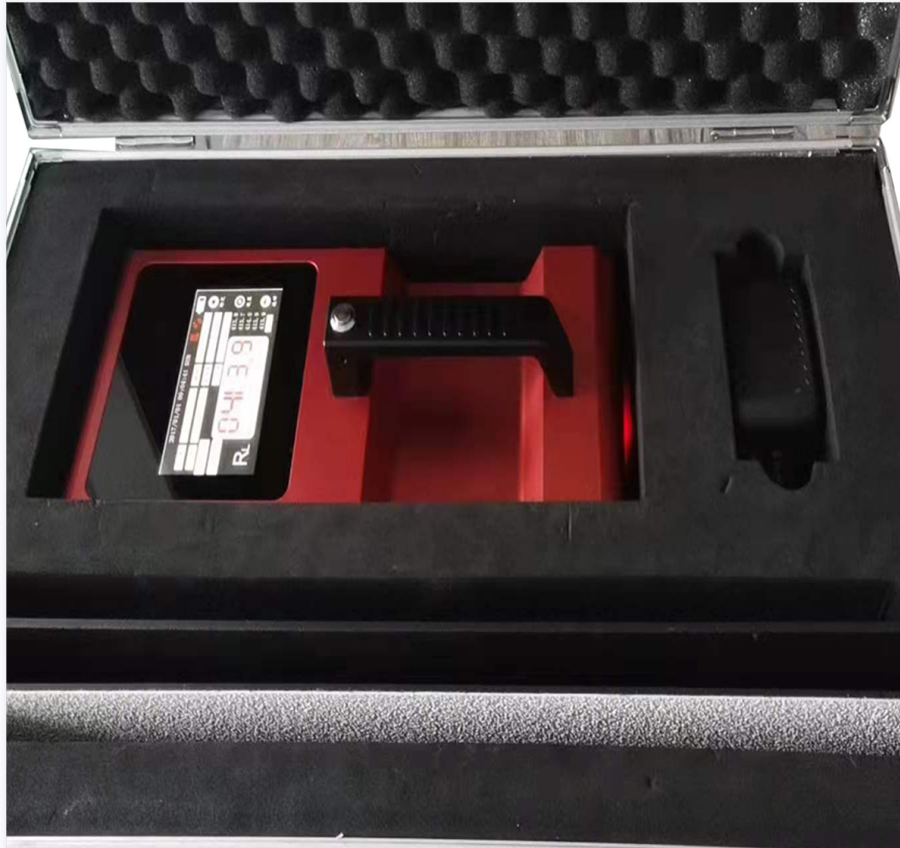

PICTURES
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal
orders.
Shipment
DHL , FEDEX , UPS , TNT , EMS :5-7 working days
Any other shipment way could be negoticated
