Support Real-time Display Of On-site Temperature And Humidity With
Retro Reflective Meter
The retroreflective marking measuring instrument is an instrument
used to measure the photometric performance (retroreflective
coefficient R') of retroreflective materials on site. It is an
easy-to-use hand-held photoelectric instrument. It can also be used
for traffic safety management and highway, railway, aviation and
other related departments to conduct on-site measurement of
retroreflective signs, etc., and can also be used for the
reflective performance of truck reflective signs. The measurement
is used to monitor the reflective quality of the produced
retroreflective materials to ensure that the retroreflective
marking materials meet the requirements of the relevant standards.
The retroreflective coefficient is an important technical indicator
of various reflective materials, which is directly related to
traffic safety. Our Country issued the GA406-2002 "Truck Reflective
Marking" standard as a mandatory standard for the detection of
Truck reflective materials, the Ministry of Transport issued the
industry standard JT/T279-1995 "Technical Conditions for Highway
Traffic Sign Boards", setting various reflective materials 5 grades
as the basis for design and inspection of highway traffic signs.
Main technical parameters
| Measurement items | retroreflective coefficient cd .lx .m2 |
| Measurement range | 0---1999.9 |
| Observation angle | 0.2° |
| Angle of incidence | -4° |
| Built-in battery capacity | 2000mAh |
| Charger | DC 5V |
| Instrument size | 200mm × 230mm × 70mm (L×H×W) |

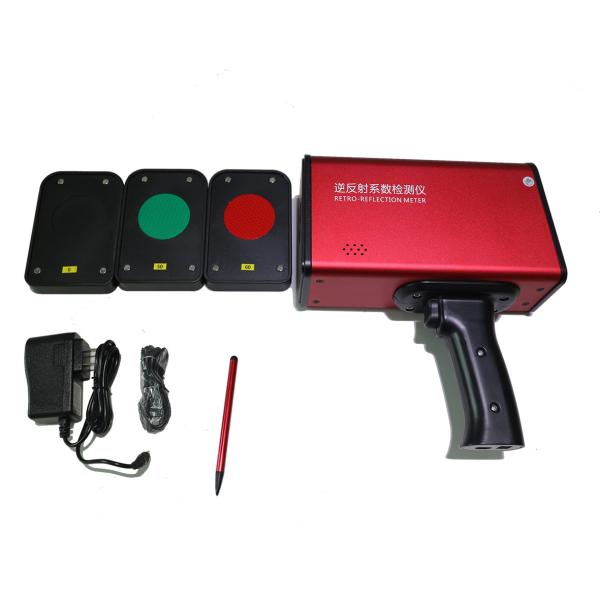

Packing list
| Serial number | Name Specification | Number |
| 01 | Traffic Sign Retro-Reflection Meter | 1 |
| 02 | Charger | 1 |
| 03 | USB Date Line | 1 |
| 04 | Instructions | 1 |
| 05 | Certificate | 1 |
| 06 | Warranty Card | 1 |
| 07 | Calibration Board | 1 |
| 08 | Stylus | 1 |
Our Service
Customized Logo
Free logo printing will be offered if order quantity is above 1pcs.
Our Warranty
1 Years warranty for all customers .
Spare Parts
A proportion of spare parts will be shipped along with formal
orders.
Shipment
DHL, FEDEX, UPS, TNT, EMS : 3-7 working days
Any other shipment way could be negoticated
